Cube ADCS
$24700 - $37400

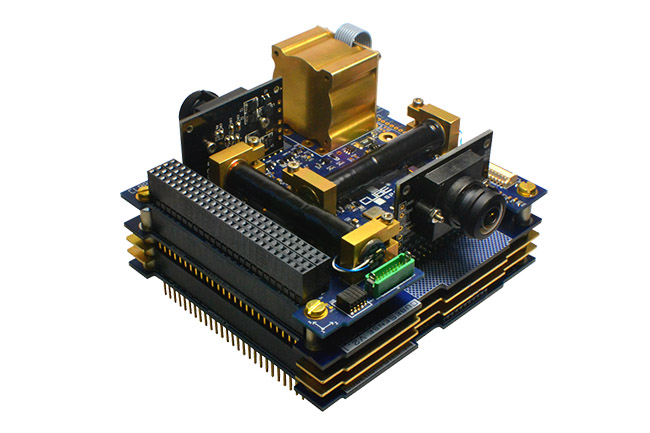

CubeADCS bundles offer custom solutions for a variety of satellite requirements. The ADCS OBC can also serve as a main satellite OBC. Each bundle consists of an integrated stack of CubeSpace components with UART, I2C, and CAN interfaces to other satellite subsystems. High-level ADCS software libraries are also available on any CubeADCS bundle. The bundles are compact and have low power consumption.
- Additional information
- Features
- Product properties
- Documents
Additional information
| Brand | |
|---|---|
| Standard configurations | CubeADCS Y-Momentum: 3-axis stabilisation using a Y-moment wheel, CubeADCS 3-Axis: 3-axis control using 3 reaction wheels |
Application:
- For nanosatellites that require attitude control
- For volume-limited satellite designs
- PC/104 for factor, compatible with CubeSat standard
Standard configuration:
- CubeADCS Y-Momentum: 3-axis stabilisation using a Y-moment wheel, from USD 22,000.00

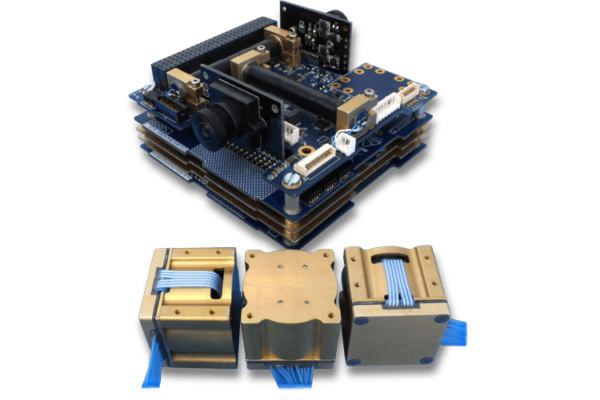

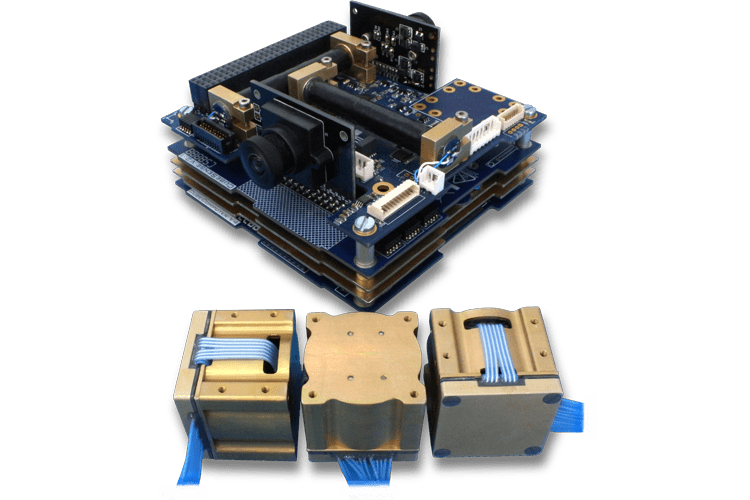

- CubeADCS 3-Axis: 3-axis control using 3 reaction wheels, from USD 34,000.00
- Any other combination of the CubeSpace products can also be supplied
ADCS Software Library:

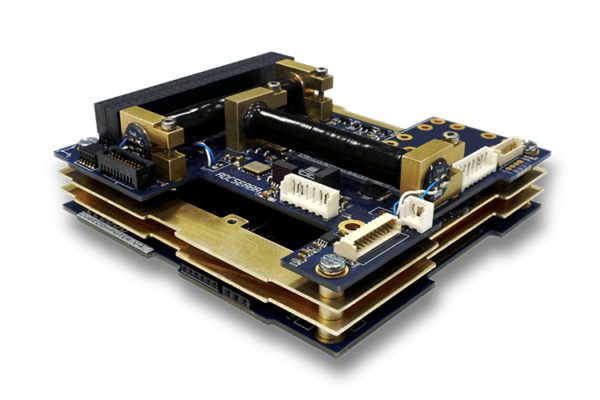

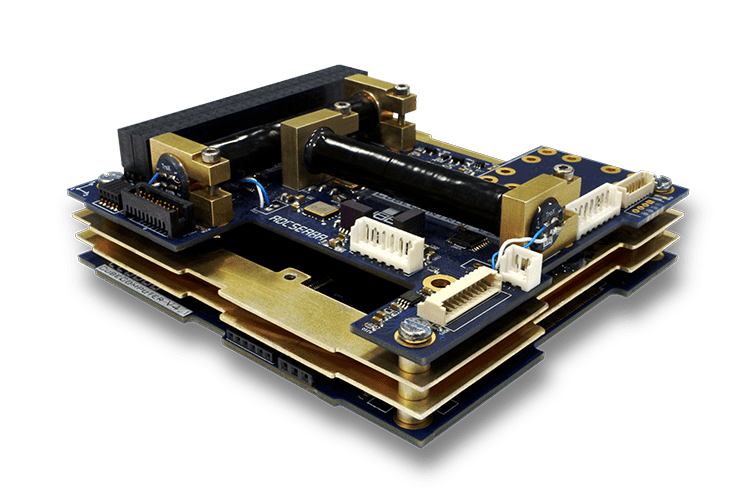

- Magnetic Controllers: B-dot, Y-spin and Cross-Product
- Wheel Controllers: Y-Momentum and Quaternion Feedback
- Estimators: Rate Kalman Filter (RKF), TRIAD algorithm, Extended Kalman Filter (EKF)
Testing and Heritage
- Successful vibration & heated vacuum tests
- Radiation tests (TID @ 20 krad)
- Used on QB50 precursor satellites
- Operating voltage: 3.3V, 5V, battery voltage (7.5V to 16V)
- Power consumption*: around 1.0W (nominal)
- I2C bus voltage: 3.3V / 5V
- Operating temperature: -10 degC to +60 degC
- Mass & Dimensions (CubeADCS Y-Momentum): 351 g, 90 x 96 x 58 mm
- Mass & Dimensions (CubeADCS 3-Axis): 506 g, 90 x 96 x 59 mm
* Depends on configuration options
