ISIS Vertical Integration Support Jig for 1U/2U/3U

ISIS Vertical Integration Support Jig for 1U/2U/3U

Price on request

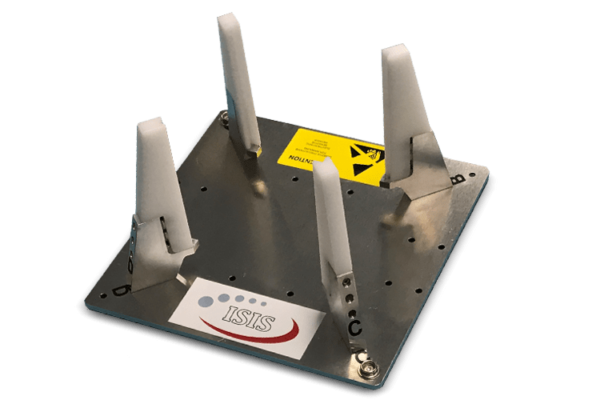

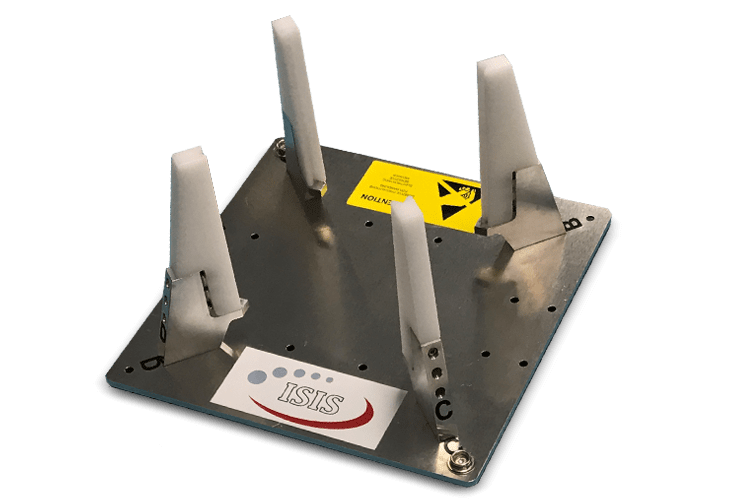

This robust integration jig enables you to work on your CubeSat in a safe and convenient way. The jig provides a stable base in which the CubeSat can be mounted in multiple positions while maintaining maximum accessibility to the spacecraft components.

The jig prevents accidental tip-over of the spacecraft and provides a grounding interface for both the jig and the spacecraft.
The support jig also provides a measure for grounding the spacecraft during handling and test.

Availability: 2- 4 weeks

Sold By : ISISPACE Category:
  • Features
  • Product properties
  • Documents

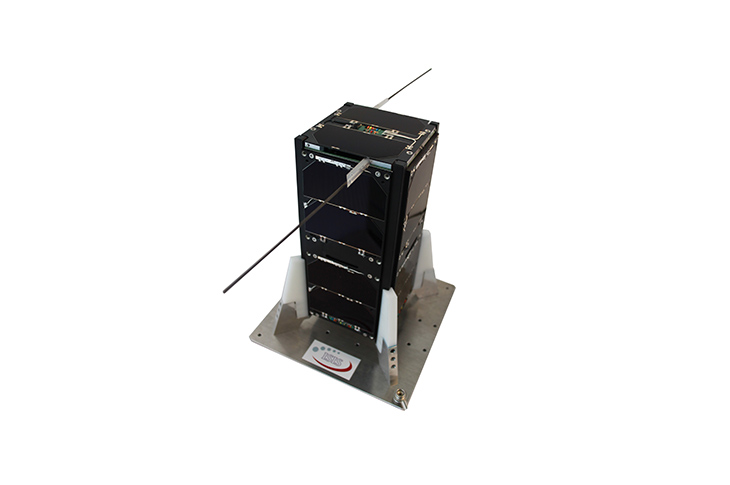

  • Provides an ‘extra hand’ during the integration of CubeSats
  • Reduction of damage to satellite system during handling
  • Compatible with the latest CubeSat standards
  • Equipped with rubber stand-off for electrical isolation
  • Available for 1U, 2U and 3U CubeSat structures
  • 2 fixed clamps and 2 adjustable POM clamps ( to prevent damage to structure)
  • Used for mounting external payload on CubeSats, functional test of satellite systems and environmental testing of satellites
  • ESD protection of structure through additional ESD cable
  • Length: 200 mm
  • Width: 200 mm
  • Height (without S/C): 120 mm
  • Clearance between baeplate & S/C: 20 mm
  • Material: Aluminium, POM ( Polyoxymethylene)
