BA0x High Energy Density Battery Array

Flight Heritage since 2013

3,000.006,300.00

As thin as 7 millimeters thick, the EXA BA0x High Energy Density Battery Array is a family of power store/delivery devices designed to provide the highest energy capacity and redundancy: From a minimum of 19.9Whr to a maximum of 53.2Whr per bank. For missions like 1U Cubesats, the BA0x enables your system to perform longer and better and pack even more power than a 3U configuration, the double sided arrays are user configurable to output 3.7V or 7.4V. All our batteries are fully customizable to your mission’s need in terms of output, cable, connectors or interfaces and options are available as integrated Carbon Nanotubes Thermal Transfer Bus (CN/TTB) shield which allows missions to reuse the spacecraft self-generated heat, integrated MT01 Magnetorquer and integrated thermal sensor.

Availability: 4 – 6 weeks

Clear
SKU: N/A Category:
  • Description
  • Features
  • Performance
  • Product properties
  • Materials
  • Testing
  • Documents

The BA0x battery family is a cells-only array battery, no electronics on board, this liberates you to select whatever EPS system you like or already have and supercharge it in order to obtain the best from any product you may have selected without compromising your system standards, the BA0x family can integrate with almost any EPS system actually in the market. When coupled with our DSA family of deployable solar arrays based on artificial muscles, the BA0x batteries are capable to provide even longer mission lifetimes, as our own satellites can attest: Almost 4 years in orbit and still working.

Every array is tested and qualified in our own facilities and shipped with full reports and packed with additional match connectors interfaces. Check the paper in the documents section of the product to know more about in-orbit test results and the engineering of the batteries, the BA0x family has flight heritage since 2013.

  • Very thin versions available: only 7 mm single sided and 14 mm double sided
  • Very high energy density cells can power from 1U to 27U missions
  • Unique containment technology prevents swelling of the cells in vacuum
  • The double sided arrays can be used as serial or parallel (3.7V or 7.4V) user configurable
  • Perfectly coupled with our DSA Deployable Solar Arrays
  • Multiple redundant cells ensures mission survivability
  • Multiple BA0x can be connected in series or parallel enabling ultra high power missions
  • Designed for LEO missions and requirements
  • Stand alone charge port available
  • High discharge capable for deep cycle payloads
  • Space heritage from NEE-01 PEGASUS, NEE-02 KRYSAOR and IRVINE01
  • Manufactured with space grade materials according to space standards and custom mission design
  • Functional, performance, thermal bake out and vibration tests provided with documentation.
  • Compatible with ISIS and Pumpkin Structures and compliant to CubeSat Standard
  • Charging cables provided by default and custom Interface available
  • Supply Voltage: 3.7V nominal , 4.2V at full charge
  • Supply Current: 900mAh per cell (multiply by the number of cells in the array)
  • Typical internal resistance: 1 to 7 milliohms @ 25°C
  • High discharge rate: 20 times the nominal capacity within 2 seconds
  • High speed charge rate: 3 times the nominal capacity

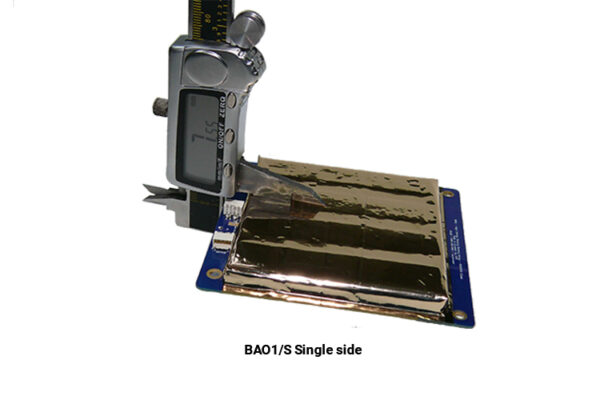

  • Pegasus Class BA01/S, 26.6 Whr / 7200 mAh, 3.7 V, 89x95x7 mm (LxWxH), 8 Cells
  • Pegasus Class BA01/D, 53.2 Whr / 14400 mAh, 3.7 V, 89x95x14 mm (LxWxH), 16 Cells
  • Irvine Class BA02/S, 19.9 Whr / 5400 mAh, 3.7 V, 85x90x7 mm (LxWxH), 6 Cells
  • Irvine Class BA02/D, 39.9 Whr / 10800 mAh, 3.7 V, 85x90x14 mm (LxWxH), 12 Cells
  • Mass (exact mass depends on configuration):
    • Pegasus Class BA01/S, 26.6 Whr – 115 grams
    • Pegasus Class BA01/D, 53.2 Whr – 180 grams
    • Irvine Class BA02/S, 19.9 Whr – 85.0 grams
    • Irvine Class BA02/D, 39.9 Whr – 155 grams
  • Operating Temperature:
    • 30 to +80°C w/o CN/TTB option
    • 60 to +120°C with CN/TTB option
  • Radiation Tolerance: 2 years minimum in LEO, 4 years minimum when the S/C has NEMEA shielding
  • Base panel: FR4-Tg180
  • Shielding: Optional integrated Carbon Nanotubes Thermal Transfer Bus (CN/TTB) shield
  • Cell Material: Lithium polymer
  • Cell Interconnector: Invar Silver plated copper
  • Interfaces:
    • Custom choice, normally Molex PicoBlade/PicoSpox inline 2 pin/4 pin connector with gold plated contacts
    • or Samco multi pin gold coated interface
    • PTFE (Teflon) space grade cables, single strand, silver plated copper (AWG20 to AWG24)
  • All batteries are provided with tests reports regarding the following tests:



Test QT AT
Functional
Vibration
Thermal Cycling
Thermal Vacuum
Cable/Connector integrity
Polarity
Performance
Freezing/Overheating
  • Thermal Bake out (10E-7 mbar @ 50C for 24 hours)
  • Full vibration test for Dnepr and Long March 2D vibration profiles, other LV profiles available upon request
  • QT and AT is performed on the unit to be shipped at no charge.
