Nano Release Nut (nD3RN)
Price on request

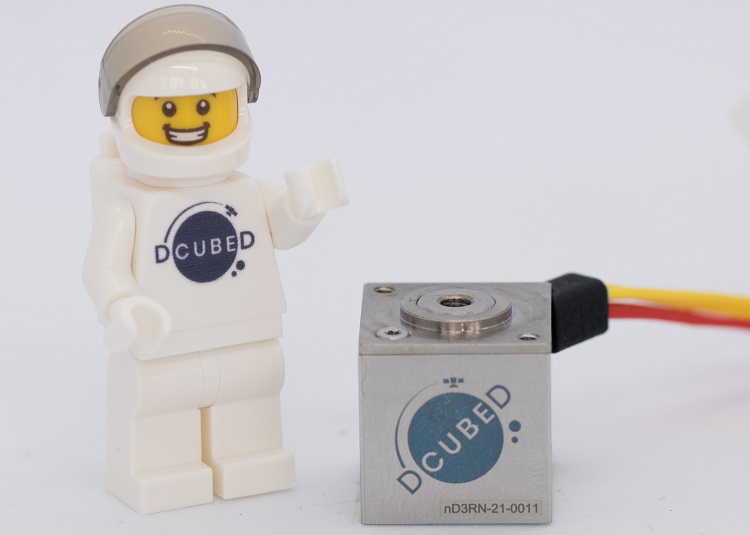

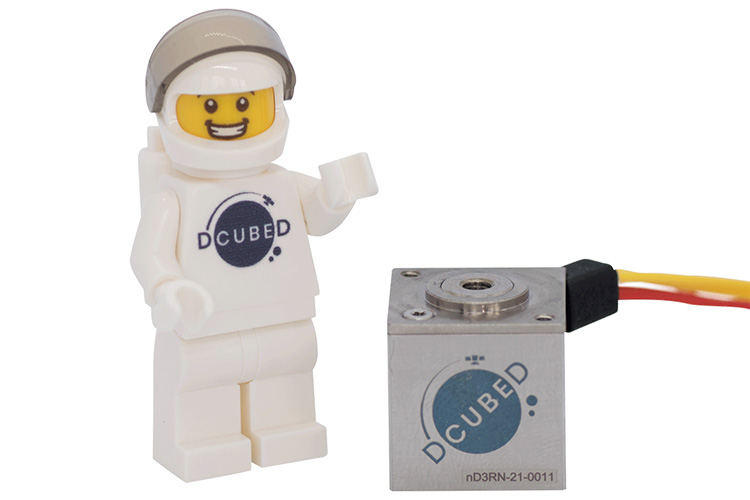

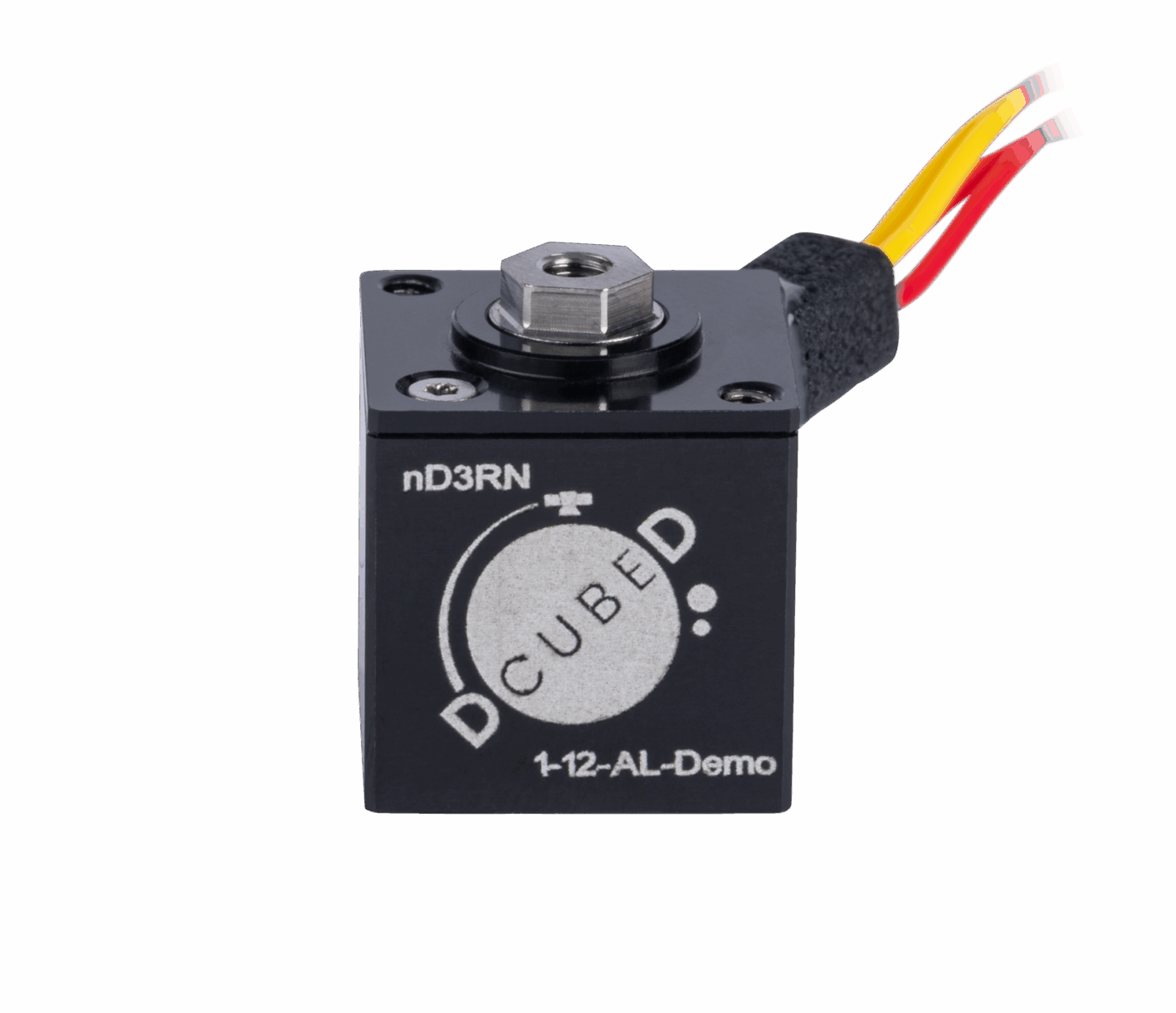

The DCUBED Nano Release Nut (nD3RN) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful space-qualified HDRM solutions on the market. Moreover, it is easily resettable (on-ground, in-space), easy-to-use and readily available as a COTS part. Space-proven, easy-to-use release actuator for compact space mechanisms.
Description
Space-proven, easy-to-use release actuator for compact space mechanisms
- On Ground and In Space Resettable in Seconds, up to 400 times
- Short Delivery Time (2-4 weeks)
- Fully Redundant Actuation
- Space Heritage (TRL 9)
- Smart SMA Trigger
- Ultra Low Shock
- Axial Load >250N
- Body Size: 17 x 17 x 17mm
- Mass: 25grams
- Surface Treated Stainless Steel
- Temperatures: -35 C to +80 C
- Customizable Interfaces
- Export Limitation Free
DCUBED also offers a counterpart nano Pin Puller which can be viewed here.
Specifications
| Premium | Custom | |
| Body Size (L x W x H) | 17 x 17 x 17 mm (Screw Interface) | Custom 17 mm height (min.) |
| Mass | ~25 g | Variable |
| Material | 1.4404/316L | 1.4404/316L |
| Operating temperature range | -35oC to 80oC | -35oC to 80oC |
| Release nut dimensions | Ø7 mm x 11 mm length | Ø7 mm x 11 mm length |
| Maximum axial load (Release direction) | 200 N1 | 200 N1 |
| Maximum Angular Misalignment (TBC) | 3o Cone | |
| Internal load (applied axially to the back of the nut) | 11 N | 11 N |
| Rapid resettability | Yes, re-insertable nut | Yes, re-insertable nut |
| Redundancy | Yes, the secondary actuation line | Yes, the secondary actuation line |
1 Achieved with the internal application of a space certified solid lubricant (Molykote 106). Take care when placing optics in proximity to the mechanism.
