Nano Pin Puller (nD3PP)

Nano Pin Puller (nD3PP)

Price on request

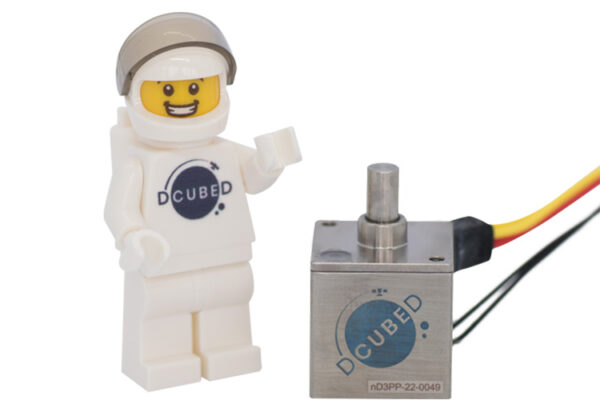

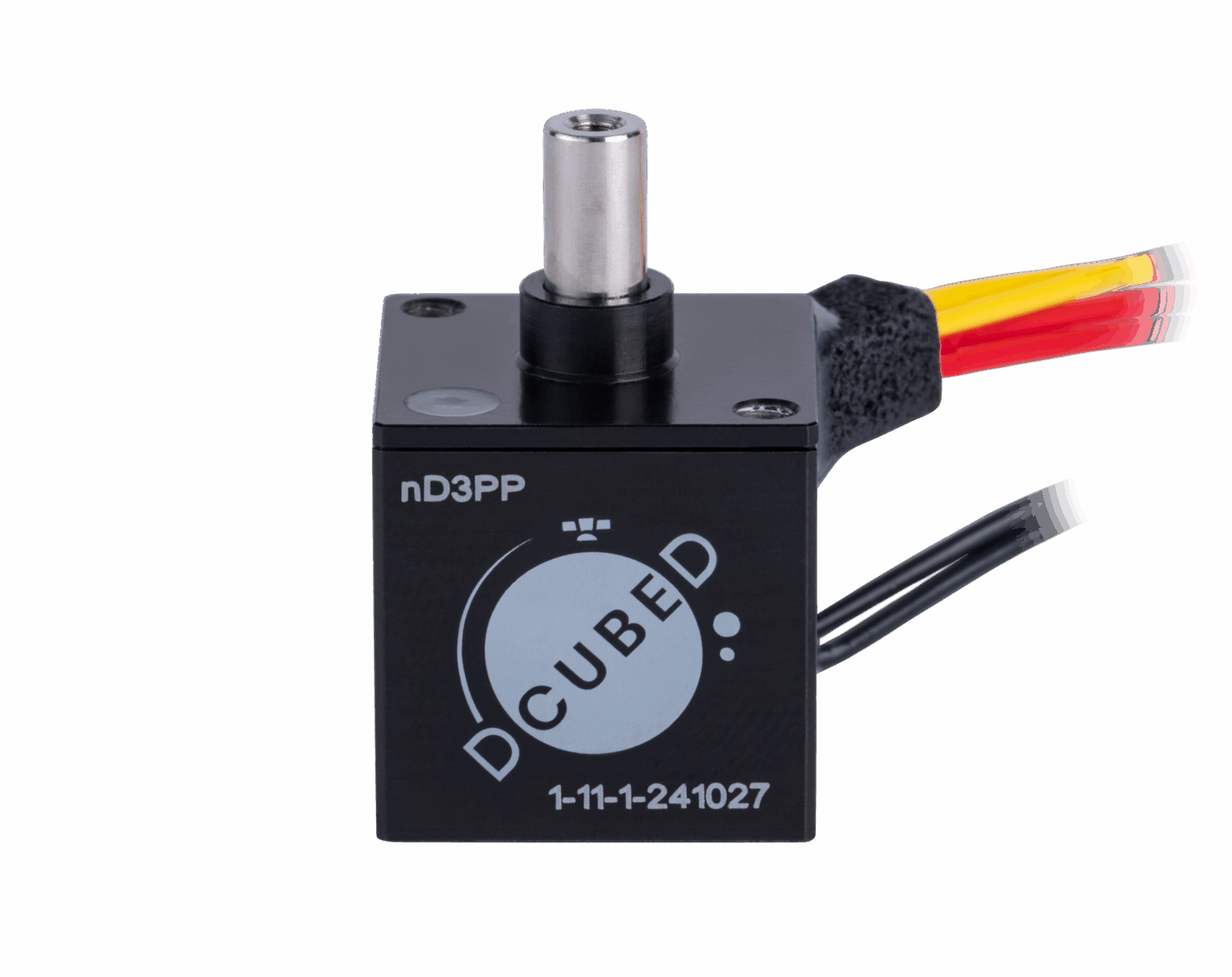

Compact, linear actuator with space heritage providing a smooth and reliable trigger on orbit. DCUBED also offers a counterpart nano Release Nut which can be viewed here.

nD3PP DCUBED STEP file

nD3PP DCUBED DataSheet



Vendor: DCUBED
Sold By : DCUBED Category:

Description

  • Front and Rear Field Resettable in Seconds, up to 400 time
  • Short Delivery Time
  • Fully Redundant Actuation
  • Space Heritage (TRL 9)
  • Smart SMA Trigger
  • Very Low Shock
  • Shear Load >50N
  • Body Size: 17 x 17 x 17mm
  • Mass: 25grams
  • Surface Treated Stainless Steel
  • Temperatures: 35 C to +80 C
  • Actuation Sensor
  • Customizable Interfaces
  • Export Limitation Free

Specifications

Premium Custom
Body Size (L x W x H) 17 x 17 x 17 mm (Standard Interface) Custom x 17 mm height (min.)
Mass ~25 g Variable
Material 1.4404/316L 1.4404/316L
Operating temperature range -35oC to 80oC -35oC to 80oC
Pin dimensions Ø4mm x 6.5 mm protrusion Modifiable
Stroke 6.5 mm Modifiable
Brushing dimensions Ø6 mm x 3 mm depth Modifiable
Maximum actuation sideload 50 N1 50 N1
Rapid resettability Yes, using Ø2.5 mm hole in the back Yes, using Ø2.5 mm hole in the back
Redundancy Yes, the secondary actuation line Yes, the secondary actuation line
Internal actuation sensor Yes (Leads: AWG 28) If requested
Shock Pad Yes If requested

1 Achieved with the internal application of a space certified solid lubricant (Molykote 106). Take care when placing optics in proximity to the mechanism.
