MAI-400 Control Board

MAI-400 Control Board

16,170.0925,598.72

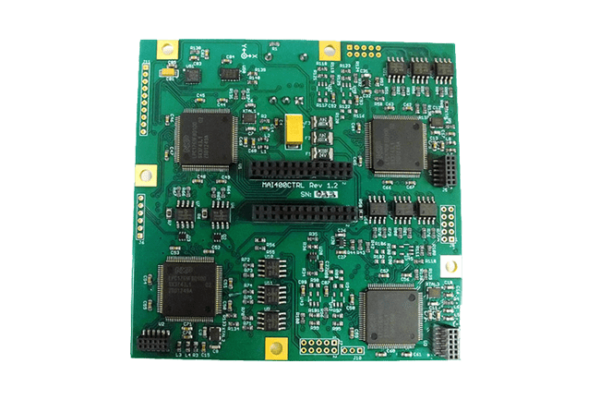

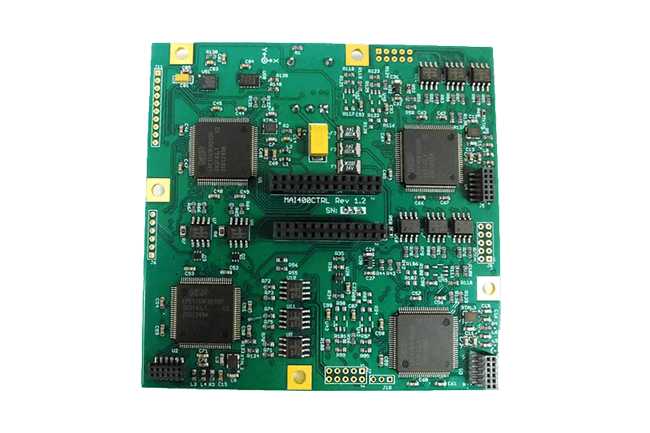

The MAI400 Controller Board incorporates four microcontrollers with a 3-axis MEMS accelerometer, 3-axis MEMS gyroscope and 3 sets of Reaction Wheel and Electromagnet drive circuitry on an 8.6cm x 8.8cm board. One of the microcontrollers is implemented as the ADACS processor while the remaining three microcontrollers used for reaction wheel control. The MAI400 Controller Board is very versatile with multiple communication interfaces available such as UART, RS232, I2C, SPI and the ability to accept up to 6 analog inputs for coarse sun sensor implementation. This product is compatible with the MAI-400 ADACS.

Availability: 90 days

Clear
SKU: N/A Category:
  • Product properties
  • Documents
  • Includes: gyroscope, accelerometer, ADCS software
  • Power
    • 5 VDC required
    • Peak current: 90 mA
  • Weight: 90 g
  • Dimensions: 8.6 cm x 8.8 cm
  • Serial interface: UART, I2C, RS232
  • 6 Analog channels
  • Operating temperature: -40 to +80 degC
