Ground station kit

Ground station kit

Price on request

Alén Space Ground Station Kit (GS-Kit) is a cost-effective solution that includes all the elements needed to set up the gateway to communicate with LEO satellites. Up to three bands can be supported in the same GS-Kit (VHF, UHF, S-band). Different antennas can be combined.

Outdoor equipment:

  • Structure
  • Azimuth rotator
  • Elevation rotator
  • Antennas (2 yagi and one helix or dish)

Indoor equipment:

  • Rotor controller
  • SDR rack. Connected directly to the outdoor LNAs/LNC.
  • Power rack
  • Server rack

Easy assembly, installation and operation manual supplied.

Availability: 16 weeks

Sold By : Alen Space Category:
  • Configurations
  • Documents
Name Antenna Configuration
GS-kit – small ●     VHF 144-148 MHz

●     UHF 435-438 MHz

GS-Kit  – big ●     VHF 144-148 MHz

●     UHF 395-405 MHz

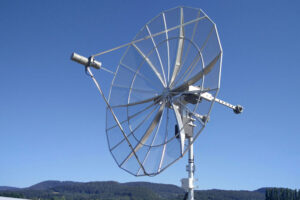

●     S-Band (Helical) 2250-2450 MHz

GS-Kit – big ●     VHF 144-148 MHz

●     UHF 395-405 MHz

●     S-Band (2 m dish) 2.1-2.6 GHz*
