Space Selfie Stick
Price on request

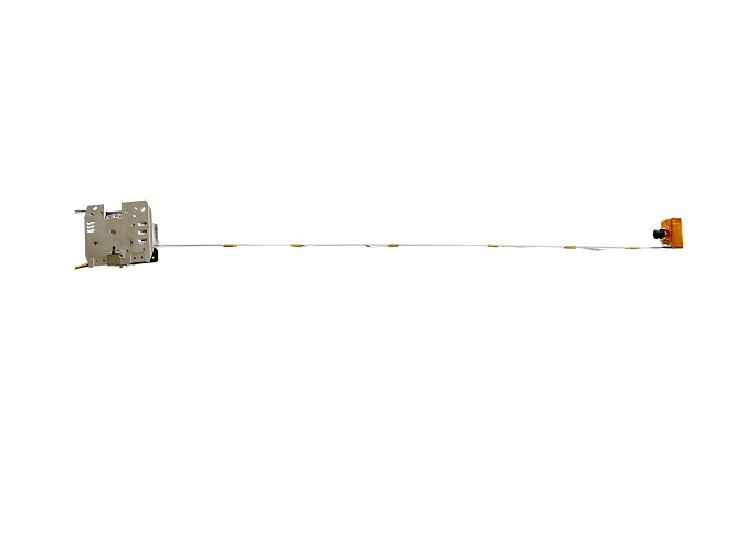

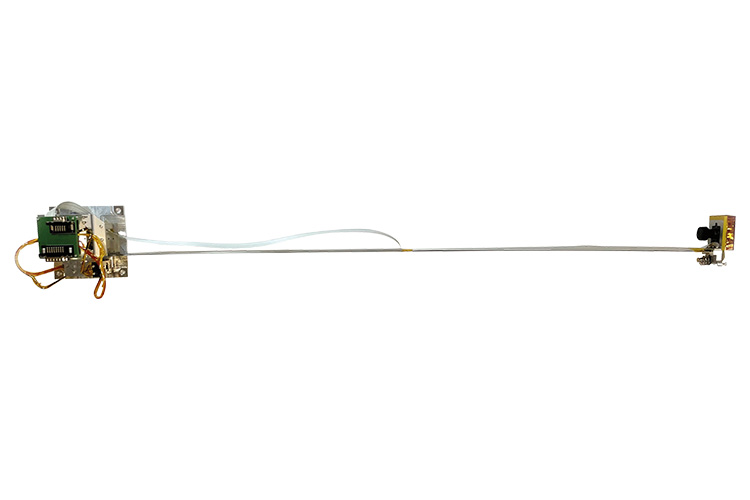

Deployable, compact selfie camera, providing you with an out-of-this-world perspective of your space mission. The DCUBED Space Selfie Stick (D3S3) is a deployable camera system which deploys a commercial selfie-camera to a distance of 80cm. It employs a DCUBED Release Nut (nD3RN) as a launch lock, which safely holds the camera module to the D3S3’s body until deployment in orbit. When triggered, the boom carrying the camera module is released and extends until its end position. This deployable selfie camera system, is compact, easily resettable, easy to use and readily available.
Description
- Short Delivery Time (3-6 months)
- Stowed Volume: 100 x 100 x 40mm (0.4U)
- Mass: <300grams
- 80cm Deployed Boom Length
- Up to 20 Megapixel
- Wide Angle Lens
- Scalable Design
- IOD mission launched on SpaceX Transporter 3
| Mass | 0.3 Kg |
| Outer dimensions (L x W x H) | 90 x 40 x 90 mm |
| Tested operating temperature range | -30oC to +80oC |
| Stored survival temperature | -30oC to +80oC |
| Deployed survival temperature range | -40oC to +105oC |
| Boom Length | >800 mm on one or two sides |
| Mounting interface | Flexible on Demand (TBD) |
| Camera Angles | Different lenses available |
| Camera resolution | 3088 x 2076 px up to 5472 x 3648 px |
| Camera communication | USB3 |
| Payload | Commercial Selfie Camera |
| Resettability | Yes |
| Redundancy | Redundancy on the HDRM activation lines |
| Mechanism | Details in section “Mechanism Boom” |
| Camera | Details in section “Camera” |
| Activation Sensor | Optional on the HDRM |
