2-Unit cubesat structure
€2950 - €3150

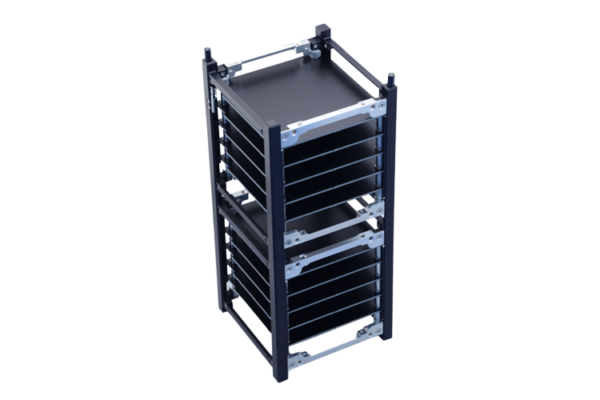

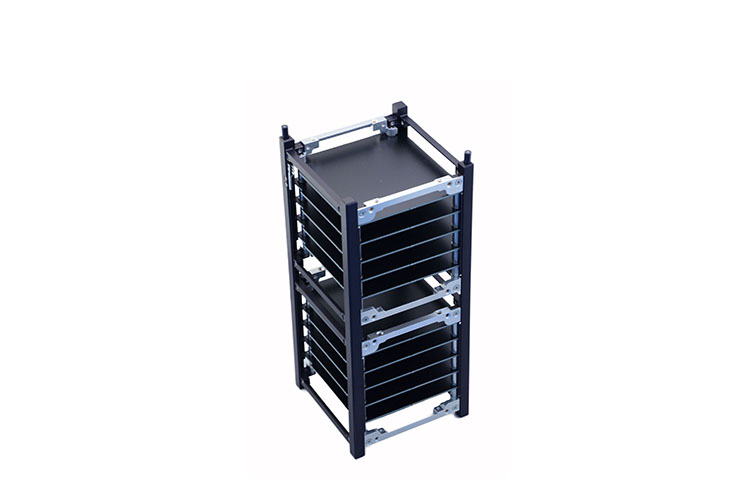

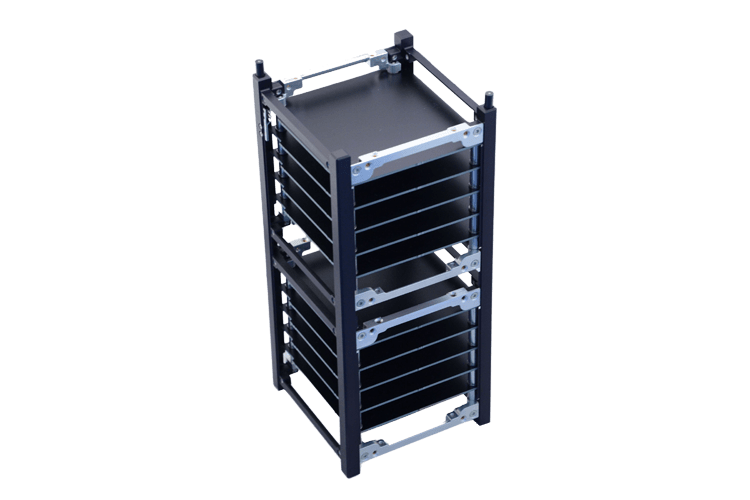

The ISIS 2-Unit CubeSat structure is developed as a generic, modular satellite structure based upon the CubeSat standard. The design created by ISIS allows for multiple mounting configurations, giving CubeSat developers maximum flexibility in their design process. The stack of PCBs and other flight modules can be build up first in the secondary structure and integrated with the load carrying frames at the end of the process, ensuring accessibility of the flight avionics. In addition, the use of a load carrying frame and detachable shear panels allows for access to all parts of the spacecraft avionics, even after final integration by removing one or more of the shear panels. The modular structure allows for up to two 1-Unit stack of PCBs, or other modules, to be mounted inside the structure.
Availability: 4 – 6 weeks
- Features
- Product properties
- Product options
- Testing
- Packaging
- Documents
- Highly modular design
- Detachable side panels for maximum accessibility
- Multiple PCB sizes supported

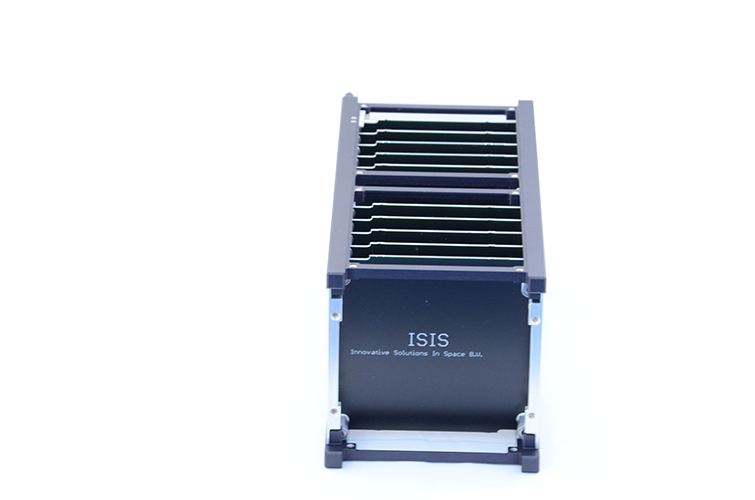

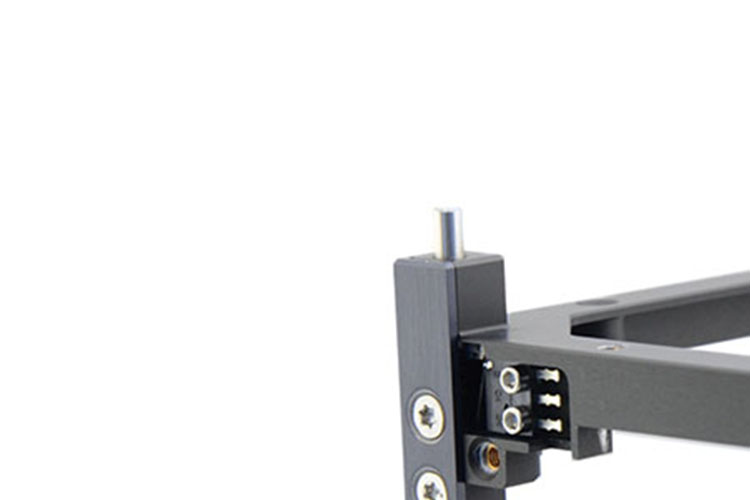

- Dual Kill-switch mechanism
- Scalable design to larger CubeSat form factors
- Compatible with most of CubeSatShop products
- Flight Heritage since 2013
| Property | Value | Unit |
| Primary Structure Mass* | 165 | gram |
| Primary + Secondary Structure Mass* | 206 | gram |
| Outside Envelope (l x w x h) | 100 x 100 x 227.0 | mm |
| Inside 1U Avionics Envelope (l x w x h) | ~ 98.4 x 98.4 x 98.4 | mm |
| Inside 1U Payload Envelope (l x w x h) | ~ 98.4 x 98.4 x 98.4 | mm |
| Thermal Range (min – max) | -40 to +80 | °C |
*Primary mass consists of SideFrames, Ribs and 2 KillSwitch mechanisms
Secondary mass includes the Stack Rods (Side Shear Panels not included)
- Different PCB form factors
- PC/104 CubeSatKit compatible (Default)
- 94 x 94 mm PCBs
- Custom designs
- Different orientations of PCB stack
- Veritical orientation (default)
- Horizontal orientation (only featured for custom 94 x 94)
- Cutomized structural elements
- Special mount points
- Cut-outs
- Special surface treatments
| Test | QT | AT |
| Functional | ✔ | ✔ |
| Vibration | ✔ | ❌ |
| Mechanical Shock | ✔ | ❌ |
| Thermal Cycling | ✔ | ❌ |
| Thermal Vacuum | ❌ | ❌ |
| Total Ionizing Dose | ❌ | ❌ |
- Contents
- Primary Structure parts (Side Frames, Ribs)
- Secondary Structure parts (shear panels, PCB mounting elements) on demand
- Kill-Switch mechanism (2x)
- Dummy PCBs
- Fasteners
- User Manual and installation Guide
- Packaging
- Boxed in transparent storage case
