6-Unit cubesat structure

Flight heritage since 2015

€7350 - €7850

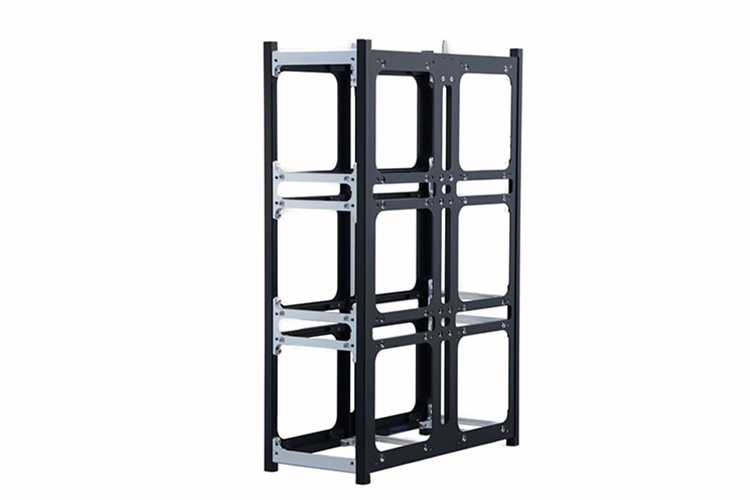

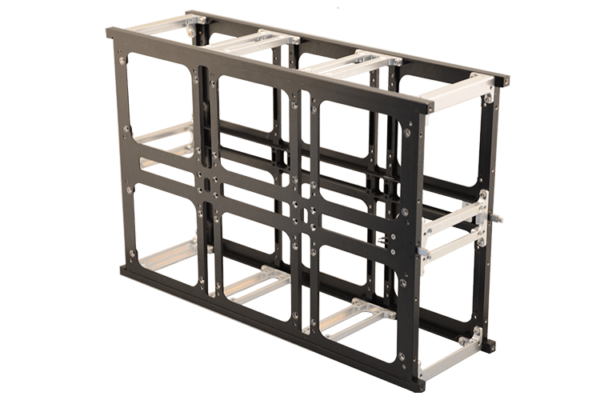

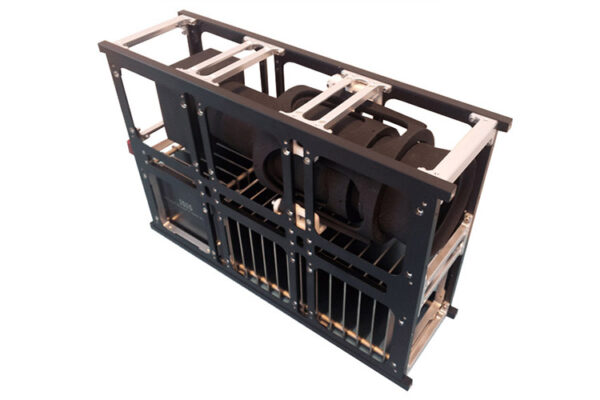

The ISIS 6-Unit CubeSat structure is developed as a generic, modular satellite structure based upon the CubeSat standard. The design created by ISIS allows for multiple mounting configurations, giving CubeSat developers maximum flexibility in their design process. The stacks of PCBs and other flight modules can be build up first in the secondary structure and integrated with the load carrying frames at the end of the process, ensuring accessibility of the flight avionics. In addition, the use of a load carrying frame and detachable shear panels allows for access to all parts of the spacecraft avionics, even after final integration by removing one or more of the shear panels. The modular structure allows up to six 1-Unit stacks of PCBs, or other modules, to be mounted inside the structure in two rows of three. For example a 3-Unit bus in combination with a 3-Unit imager.

Clear
SKU: N/A Category:
  • Features
  • Product properties
  • Product options
  • Testing
  • Packaging
  • Documents
  • Highly modular design
  • Detachable side panels for maximum accessibility
  • Multiple PCB sizes supported (custom configuration)
  • Dual Kill-switch mechanism
  • Scalable design to larger CubeSat form factors
  • Compatible with ISIS, GomSpace, ClydeSpace and most of CubeSatShop products
Property Value Unit
Primary + Secondary Structure Mass 1100 gram
Outside Envelope (l x w x h) 100 x 226.3 x 340.5 mm
Inside Envelope (l x w x h) per module (6 x) 96 x 96 x 89.4 mm
Thermal Range (min – max) -40 to +80 °C
  • Different PCB form factors
    • PC/104 CubeSatKit compatible (Default)
    • Custom designs
  • Different orientations of PCB stack
    • Horizontal orientation
    • Vertical orientation
  • Customized structural elements
    • Special mount points
    • Cut-outs
    • Special surface treatments
Test QT AT
Functional
Vibration
Mechanical Shock
Thermal Cycling
Thermal Vacuum
Total Ionizing Dose
  • Contents
    • Primary Structure parts (Ribs, PCB mounting elements, side frames)
    • Secondary Structure parts (side panels) on demand
    • Kill-Switch mechanism (2x)
    • Fasteners
    • User Manual and installation Guide
  • Packaging
    • Boxed in transparent storage case
