Gen 1: CubeADCS
€43,500

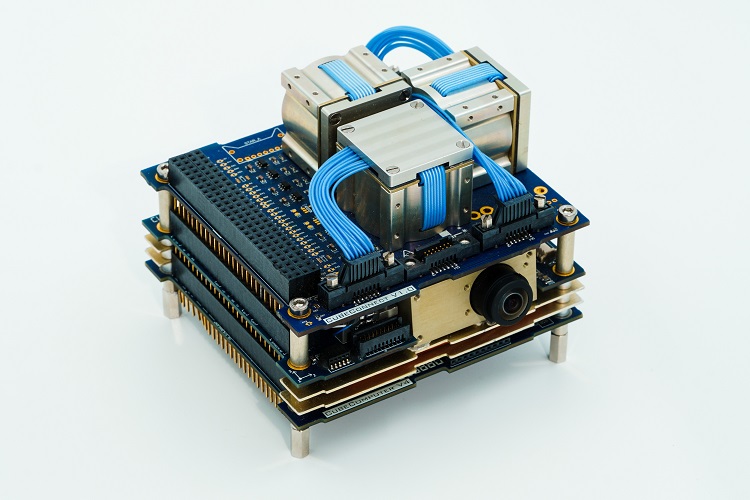

A standard CubeADCS will include.
- CubeADCS Computer: with 3-axis MEMS rate sensor
- CubeControl: Sensor and actuator interface board + 3-axis gyro
- 3x CubeWheel Small: Mounted on the XYZ-Axis
- *2x CW0003 + 1x CubeCoil
- CubeSense: Fine Sun or Earth Sensors
- *1x Deployable CubeMag: 3-Axis magnetometer
- 10x Coarse Sun Sensors
Options:
- *CubeMag Compact: Non-deployable
- CubeStar: Star Tracker
- Additional CubeSense: Earth or Fine Sun sensor
- Upgrade to CubeWheel Small+
- Upgrade to CubeWheel Medium: Not mountable on CubeControl
- Upgrade to CubeWheel Large: Not mountable on CubeControl
The representative CAD model available for download is based on the standard version of the 3-axis ADCS, including the CubeWheel Small. The standard version is suitable for 2U and 3U spacecraft and options and upgrades for satellites up to 12U are also available. Final pricing will be mission dependant.
Software Support: Hourly support for custom firmware. Download our brochure for more detailed specifications.
*Will use components from the Gen 2 Product Line
*Starting price from: 43500$
Description
Features:
The system includes features such as TLM logging, sensor and actuator power control and FDIR, communication bus monitoring, SGP4 orbit propagation, as well as estimator and control algorithms for virtually all ADCS control modes. On top of the control modes available on the CubeADCS, this 3-Axis adds the capability to perform a 3-axis pointing in any direction.
A standard CubeADCS will include:
- CubeADCS Computer: with 3-axis MEMS rate sensor
- CubeControl: Sensor and actuator interface board + 3-axis gyro
- 3x CubeWheel Small: Mounted on the XYZ-Axis
- *2x CW0003 + 1x CubeCoil
- CubeSense: Fine Sun or Earth Sensors
- *1x Deployable CubeMag: 3-Axis magnetometer
- 10x Coarse Sun Sensors
Options:
- *CubeMag Compact: Non-deployable
- CubeStar: Star Tracker
- Additional CubeSense: Earth or Fine Sun sensor
- Upgrade to CubeWheel Small+
- Upgrade to CubeWheel Medium: Not mountable on CubeControl
- Upgrade to CubeWheel Large: Not mountable on CubeControl
The representative CAD model available for download is based on the standard version of the 3-axis ADCS, including the CubeWheel Small. The standard version is suitable for 2U and 3U spacecraft and options and upgrades for satellites up to 12U are also available.
Software Support: Hourly support for custom firmware. Download our brochure for more detailed specifications.
*Will use components from the Gen 2 Product Line
Technical Specifications
| Features | 3-Axis Small |
3-Axis Medium | 3-Axis Large |
| Typical satellite size | 2U-3U | 6U-8U | 12U-16U |
| Estimation Modes | MEMS Rate Filter, Magnetic Rate Filter, TRIAD, Full-state EKF, MEMS Gyro EKF | MEMS Rate Filter, Magnetic Rate Filter, TRIAD, Full-state EKF, MEMS Gyro EKF | MEMS Rate Filter, Magnetic Rate Filter, TRIAD, Full-state EKF, MEMS Gyro EKF |
| Control Modes | Detumbling, Y-Thomson, Nadir Pointing, Inertial Pointing, Sun Pointing, Ground Target Tracking, XYZ Wheel Control | Detumbling, Y-Thomson, Nadir Pointing, Inertial Pointing, Sun Pointing, Ground Target Tracking, XYZ Wheel Control | Detumbling, Y-Thomson, Nadir Pointing, Inertial Pointing, Sun Pointing, Ground Target Tracking, XYZ Wheel Control |
| Physical | |||
| Mass (approximate) [g] | <500 | <800 | <1300 |
| Dimensions [mm] | 90x96x57 | 90x96x32 (excl. actuators) | 90x96x32 (excl. actuators) |
| Operating Temperature | -10°C to 60°C | -10°C to 60°C | -10°C to 60°C |
| Hardware | |||
| Computing Unit | ADCS computer with 3-axis MEMS rate sensor | ADCS computer with 3-axis MEMS rate sensor | ADCS computer with 3-axis MEMS rate sensor |
| Default Sensors | Deployable magnetorquer, coarse sun sensors, fine sun & earth sensors |
Deployable magnetorquer, coarse sun sensors, fine sun & earth sensors | Deployable magnetorquer, coarse sun sensors, fine sun & earth sensors |
| Optional Sensors | Redundant magnetorquer, star tracker |
Redundant magnetorquer, star tracker | Redundant magnetorquer, star tracker |
| Actuators | 3 x CubeWheel Small
2 x CubeTorquer Small 1 x CubeCoil |
3 x CubeWheel Medium
2 x CubeTorquer Small 1 x CubeCoil |
3 x CubeWheel Large
2 x CubeTorquer Large |
