TRISKEL (OBC+TTC+OBSW)

TRISKEL (OBC+TTC+OBSW)

Price on request

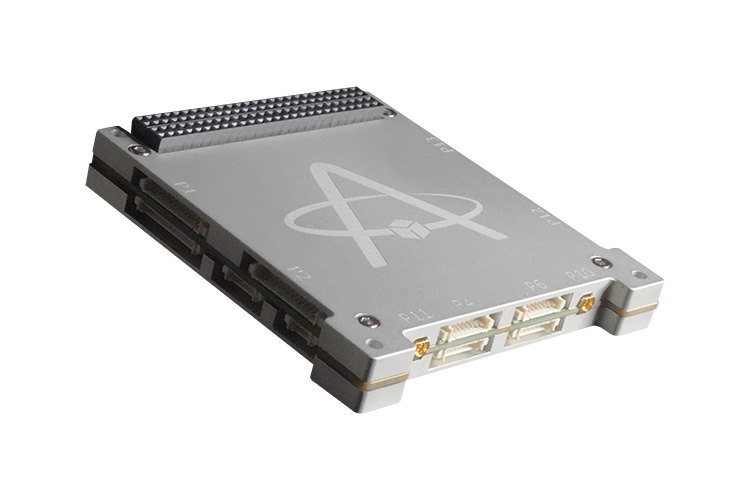

TRISKEL is a three-in-one solution for the command and data handling chain of your satellite. It integrates the On-board Computer (OBC), Telemetry, Tracking, and Command (TTC) and On-board Software (OBSW) in one module allowing communication with ground stations in the UHF band while saving space in the satellite’s platform.

Lead time: 12 weeks

TRISKEL brochure

TRISKEL Datasheet

Vendor: Alén Space
Sold By : Alen Space Category:

Description

Interfaces:

  • 3xRS422 Full-Duplex
  • 1xUART for external communication
  • 2xCAN
  • 2xI2C
  • PPS
  • 15xGPIO in different connectors
  • 8xADC
  • 6xPWM over an H-Bridge
  • Umbilical connector with following interfaces:
    • CAN
    • OBC JTAG
    • 4xGPIOs
    • OBC UART for debugging
    • Multipurpose OBC UART
    • TTC UART for debugging
    • 2xUARTs for payload access
  • RF TX/RX for TTC
  • SPI
  • On-Board Computer:
    • ARM Cortex-M7 CPU 32-bit
    • 2MB program flash memory
    • 1.4MB of internal RAM memory
    • 2xmicroSD card slot for massive storage
    • EEPROM for board configuration
    • RAM execution memory (SDRAM – 256 Mb)
    • Persistent memory (MRAM – 4 Mb)
    • Persistent memory for data storage (NAND Flash – 1 Gb)
    • Hardware watchdog and reset circuit
    • RTC with external power supply for time retention during power-downs
    • Switchable power for Flash, PWM H-Bridge, internal GNSS and an external independent
      power supply for external sensors.
    • Cryptographic capabilities (AES, HMAC)
  • TTC:
    • ARM Cortex-M7 CPU 32-bit
    • 2MB program flash memory
    • 1.4MB of internal RAM memory
    • EEPROM for board configuration
    • Persistent memory for OBSW status (MRAM – 4 Mb)
    • Persistent memory for data storage (NAND Flash – 1 Gb)
    • Frequencies bands:
      • UHF (395 – 410 MHz)
      • UHF amateur (430 – 440 MHz)
    • Half-duplex communication
    • GFSK modulation (GMSK)
    • Data rates: 1.2 – 19.2 kbps
    • Transmission power: 30 dBm
    • PAE: 35%
    • Reception sensitivity: -123 dBm @ 1.2 kbps
    • Golay + Reed-Solomon codification
    • Hardware watchdog and reset circuit
    • Cryptographic capabilities (AES, HMAC)
  • Different or same power supply lines options for TTC and OBC
  • Different power supply line for RTC
  • Integrated temperature and current sensors
  • Operation temperature -40 ºC to +85 ºC
