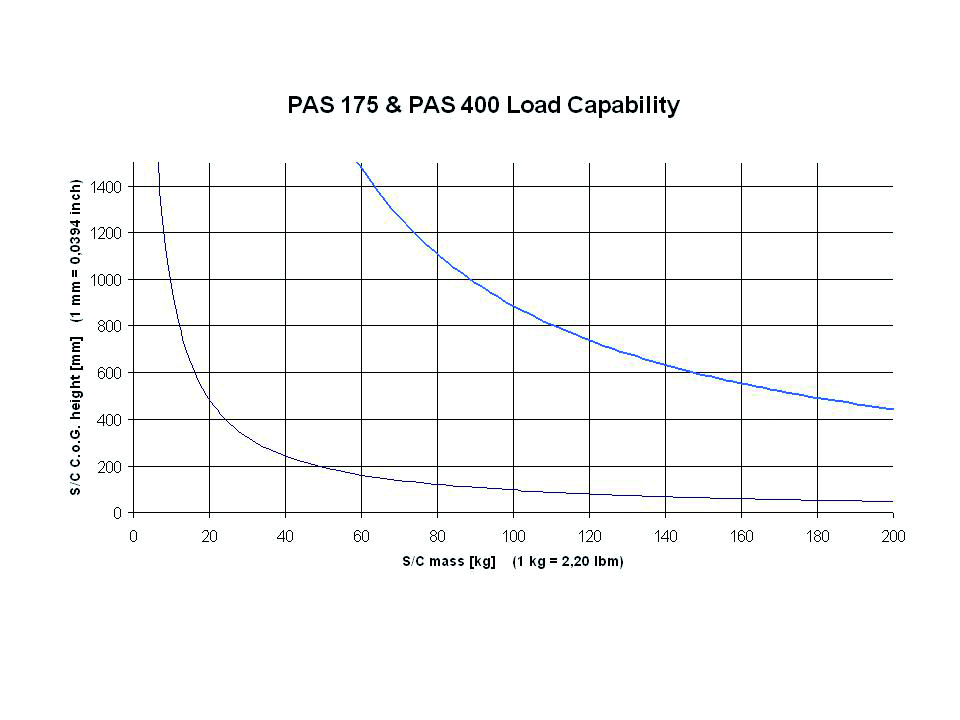

load capability

Payload Adapter Systems for Small Satellites

Price on request

The Payload Adapter Systems PAS 175 and PAS 400, are capable of handling satellites of 10 – 200 kg. The system has a unique 3-point satellite interface with an extremely small stayout zone. The system is flight proven on the Delta II Launch vehicle.

Category:
  • Features
  • Properties
  • High Load Capability (handle satellites with a mass of 10 – 200kg)
  • Compact interface
    • Clamped down on three points to the triangular base plate attached to the launcher
    • Very small interface area limited to an attachment point and a small push-off area
  • Low Shock Release Function
    • Generates extremely low release shock levels upon activation.
    • Provides less than 200g shock response spectrum (SRS) above 1000Hz

PAS 175

  • S/C interface: 3 points / 175 mm diameter
  • Total height: 40 mm
  • Base plate dimension: 184 mm x 162 mm
  • Total mass: 0.35 kg
  • Total separation energy: 0.86 Nm

PAS 400

  • S/C interface: 3 points / 400 mm diameter
  • Total height: 40 mm
  • Base plate dimensions: 416 mm x 370 mm
  • Total mass: 1.0 kg
  • Total separation energy: 0.86 Nm
