PAS 432S (17") Separation System
PAS 432S (17") Separation SystemPAS 432S (17") Separation SystemIllustrative drawing and Nominal Release Envelope

PAS 432S (17″) Separation System

Price on request

The RUAG 432S Separation System is designed for a first application for satellites up to 200 kg @ 0.45 m on the VEGA launch vehicle.

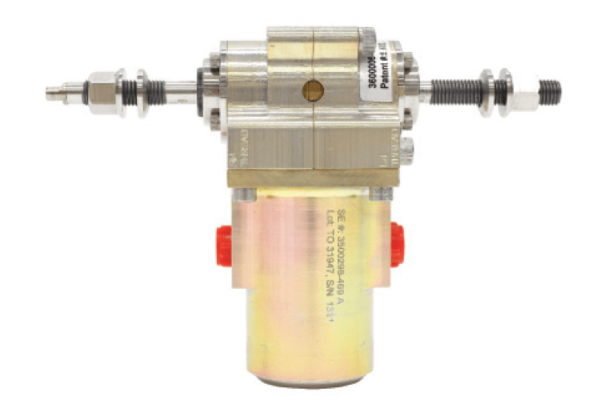

The Separation System includes a low shock clamp band separation system, interface rings, umbilical connection and a separation spring set. With our CBOD-LT™ Separation System Release Mechanism we can provide the unique combination of high load capability and a low shock release.
The PAS 432S Separation System is based on the already flight proven systems at RUAG. Developed for over 30 years, the
RUAG Space product family to date includes a broad range of Separation Systems, spanning diameters from 381 mm to 2624
mm (15″ to 103″).

Category:
  • Specifications
  • Documents
Unit Value
Bolt pretension (nominal) kN 15
Mass Total 1) kg 7.2
Separated mass kg 1.9
Dimensions Height 2) mm 123
I/F Passive ring 12 x 8.5 mm holes on a diameter of 298 mm (may be modified)
Active ring 12 x 6.8 mm holes on a diameter of 437 mm
Initiator type Pacific Scientific 103377-449 Hi-Shear PC23-250 ASI PD22240024-009 USI 1F01084-1
Separation springs No. of springs pcs 6
Spring energy 3) Joule 4.7
Release type CBOD-LT
Shock output Low shock < 100 g’s @ 1 kHz

1) Mass of the standard system including passive ring. Can be optimized to meet specific needs.

2) Height includes separation springs, active and passive rings.

3) Energy per spring.
