Infrared (IR) Earth Horizon Sensor
Price on request

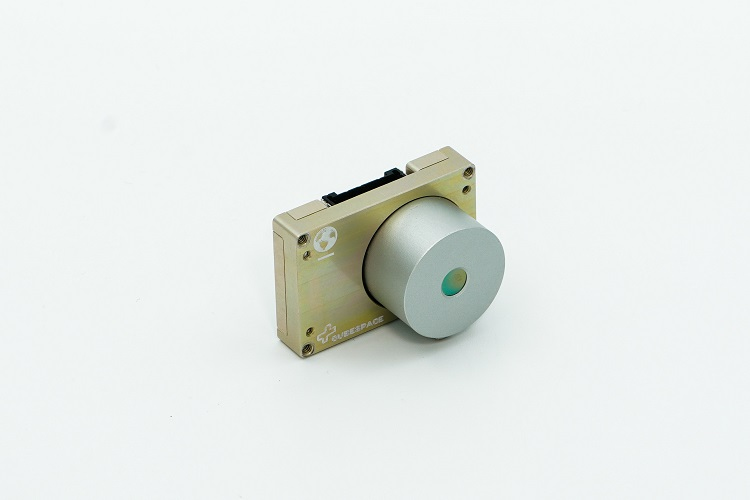

CubeSense Earth is a compact and reliable infrared earth horizon sensor that provides high-accuracy nadir determination throughout the entire orbit. This allows for accurate satellite control in eclipse without the need for a star tracker, making it a less expensive alternative. Each CubeSense Earth is verified with our infrared lens calibration and earth emulator jig, which is an innovative in-house test set-up designed and built by CubeSpace (CS) engineers.
Contact us for the latest Option Sheet and ICD for our sensors.
Lead Time: 12 weeks
Description
Features:
- Infrared horizon sensor
- Integrated processor for reduced ADCS computer processing demand
- Common node design
- Shared electronic design and heritage across Gen2 product range
- Random Vibration: 14.16 gRMS
- Radiation: 24kRad
- Lifetime: 5+ Years
Technical Specifications
| Performance | |
| Accuracy [*] | 1° (roll and elevation)
3-sigma |
| Max slew rate [°/s] | 14 |
| Physical | |
| Mass [g] | 18 |
| Dimensions [WxHxL] [mm] | 35x24x20 |
| Detection field of view [°]
(Horizontal/vertical) |
90/80 |
| Detection field of view [°]
(Diagonal) |
90 |
| Power & Data |
|
| Data bus* | CAN/UART/RS-485
**I2C available for custom solutions |
| Connector | Molex Pico-Lock Plus |
| Update rate [Hz] | Up to 2 |
| Supply voltage [V] | 3.3 |
| Peak power [mW] | 280 |
| Average power [mW] | 200 |
| Qualification | |
| Radiation | 24 kRad |
| Random vibration | 14.16 g RMS (NASA GEVS) |
| Thermal vacuum [°C] | -20 to 80 |
| Thermal cold and hot start [°C] | -35 to 70 |
