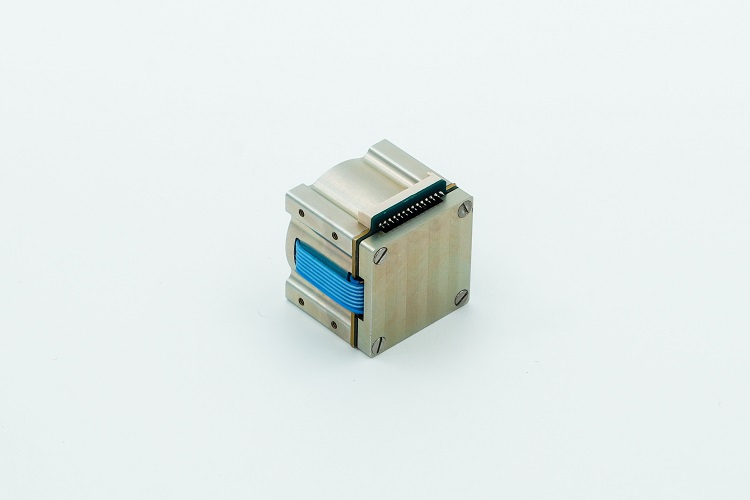

Gen 1: CubeWheel Small

Gen 1: CubeWheel Small


CubeWheel is a family of reliable and easy-to-integrate satellite reaction wheel that comes in small, small+, medium, and large sizes. It includes a highly balanced flywheel disc, a brushless electrical motor, an electronic driver, and a microcontroller circuit. The wheels can be given a speed reference command through I2C, UART, or CAN.

Download our brochure here for more detailed specifications.

Lead time: 12 weeks

Vendor: CubeSpace
Sold By : CubeSpace Category:


Easy Interfaces

  • Each wheel is mountable on its small or large face, enabling the option to mount the wheel in all axes of your satellite.
  • CubeWheel can operate at a wide range of voltages between 6.5V and 16V.

Modular Design

  • Four available sizes meet the typical CubeSat ADCS needs ranging from 2 CubeSat up to a 20kg satellite.
  • CubeWheels are designed modular, with shared electronics design between all sizes of its wheels.

Reliable Package

  • Each reaction wheel is individually balanced to reduce vibration.
  • All wheels provide a durable and reliable mounting interface under vibration.
  • Comes with all driving and interfacing electronics integrated into a complete package.


  • Low power – less than 142Mw average power
  • Wide FOV lens – 99% sky coverage
  • Low mass – less than 60g
  • Simple design with 4 mounting holes


Technical Specifications

Speed Range [RPM] ±8000
Max Momentum [mNms] 1.77
Max Torque [mNm] 0.23
Static Imbalance [g-cm] <0.003
Dynamic Imbalance [g-cm²] <0.005
Mass [g] 60
Dimensions [mm] 28x28x26.2
Operating Temperature [°C] -10 to 60
Power & Data
Supply Voltage 3.3V & 6.4 – 16V
Average Power [mW] 150
Peak Power [mW] 0.65
Communications I2C/UART/CAN
Vibrations 14
Radiation 24kRad
