Gen 2: CubeMag Deployable

Gen 2: CubeMag Deployable

$3500

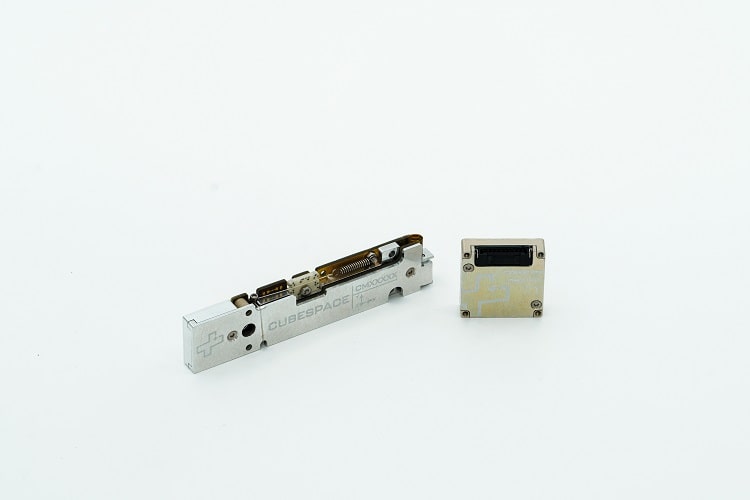

A 3-axis magnetormeter built for robustness and including a back-up sensor. The sensor comes in a compact or deployable version for satellites with larger magnetic disturbances.

The deployable form factor comes with a built-in redundant magnetometer. This sensor can be deployed to help mitigate magnetic disturbances. A compact form factor is further available for easy integration into your satellite for peace of mind.

Download our brochure here for more detailed specifications.

Lead Time: 8 weeks

Vendor: CubeSpace
Sold By : CubeSpace Category:

Description

Features:

  • M2 mounting holes
  • Deployment test – easy to deploy and stow through
  • In-orbit calibration
  • Precalibrated magnetometer
  • Shared electronic design across the Gen2 family

Technical Specifications

Performance
Noise per channel [3-sigma] [nT] 50
Linearity [full scale] 0.6%
Physical
Mass [g] 16
Dimensions [WxHxL] [mm]

  • height with protrusion is 9.5
17×6.5*x82
Power & Data
Data bus** CAN/UART/RS-485

**I2C available for custom solutions

Connector Molex Pico-Lock Plus
Update rate [Hz] 5
Supply voltage [V] 3.3
Peak power [mW] 230
Average power [mW] 50
Deployment power [mW] 2350
Qualification levels
Radiation 24 kRad
Random vibration 14.16 g RMS (NASA GEVS)
Thermal vacuum [°C] -20 to 80
Thermal cold and hot start [°C] -35 to 70
